A Heat resistant high speed door is an effective solution for industrial drying rooms where temperature control, sealing performance, and frequent access are all required. In this project, SEPPES supplied one zipper high speed door for a drying room environment with an operating temperature of around 50°C. The customer needed a door that could withstand long-term exposure to warm air while helping reduce heat loss, improve workshop efficiency, and maintain safer separation between the drying area and the surrounding production space.
Project Background
In many industrial production processes, drying rooms are used to remove moisture, stabilize materials, or support specific manufacturing procedures. Compared with ordinary workshop areas, a drying room usually has higher temperature, stronger airflow, and stricter requirements for insulation and sealing. If the entrance uses a traditional rolling shutter door, swing door, or low-speed industrial door, several problems may occur.
First, slow opening and closing can cause a large amount of hot air to escape each time the door is used. This increases energy consumption and makes it harder to maintain a stable indoor temperature. Second, poor sealing around the door frame can allow outside air, dust, and humidity to enter the drying room. This may affect the drying result and reduce the consistency of the production process. Third, in a high-frequency working environment, ordinary doors are more likely to suffer from impact damage, curtain deformation, or poor operation after long-term use.

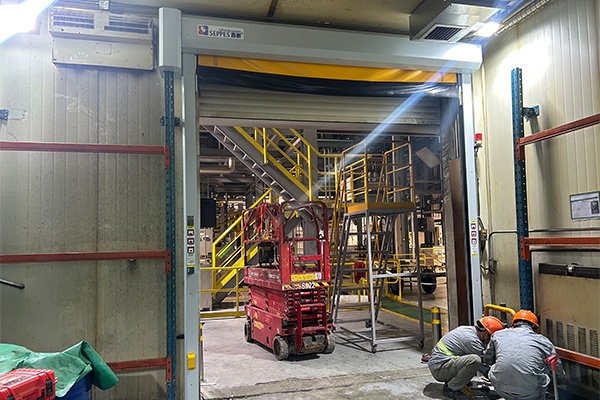

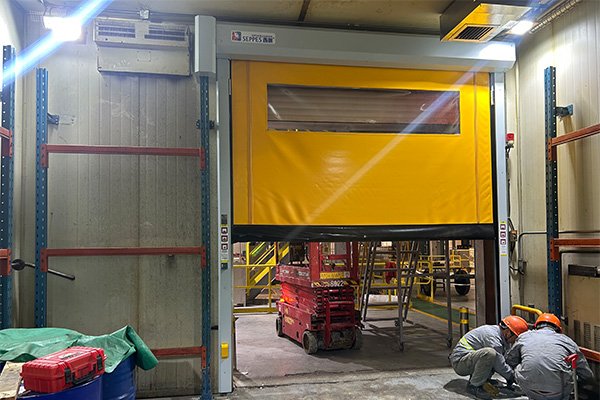

For this reason, the customer selected a Heat resistant high speed door with a zipper structure. The door was installed at the entrance of a 50°C drying room and equipped with remote button control, allowing operators to open and close the door conveniently without unnecessary contact or waiting time.
Why Use a Zipper High Speed Door in a 50°C Drying Room?
The most important advantage of a zipper high speed door is its full-side sealing structure. Unlike standard PVC high speed doors that rely mainly on brush seals or simple guide rails, the zipper design locks both sides of the curtain into the guide tracks. This creates a tighter connection between the curtain and the frame, helping reduce air leakage around the door opening.
For a drying room, this is especially valuable. The indoor temperature needs to remain relatively stable, and the drying process may be affected if outside air enters frequently. By using a zipper-type Heat resistant high speed door, the customer can reduce heat loss during daily operation and improve the overall energy efficiency of the drying area.
The fast opening and closing speed is another key benefit. When staff or materials need to pass through, the door can open quickly and close immediately after access. This shortens the exposure time of the drying room entrance and helps maintain the internal temperature more effectively than a slow industrial door.
Better Sealing for Heat Retention and Dust Control
In a 50°C drying room, sealing is not only related to energy savings. It also affects cleanliness and production quality. If the door has obvious gaps on the sides or bottom, dust and external humidity may enter the room. In some industries, this can influence material drying, surface treatment, packaging quality, or product stability.
The zipper high speed door used in this project provides a close-fitting side sealing structure, combined with a flexible PVC curtain and bottom sealing design. This helps isolate the drying room from the surrounding workshop environment. The result is a cleaner and more controlled working space.
Compared with ordinary fast doors, the zipper structure also performs better when there is airflow or pressure difference between two areas. The curtain remains more stable inside the guide tracks, reducing shaking and improving the long-term operation of the door.
Heat-Resistant Curtain for Warm Industrial Environments
The door curtain was selected according to the drying room environment. Since the working temperature reaches about 50°C, the curtain material needs to maintain flexibility and stability under warm conditions. A normal curtain that is not suitable for this environment may become soft, deformed, or less durable after long-term exposure to heat.
This Heat resistant high speed door is designed for industrial environments where the door needs to operate frequently while facing elevated temperatures. The curtain helps separate the hot drying room from the external area, while the high-speed motor and control system ensure smooth and reliable movement.
The yellow curtain also improves visual recognition in the workshop. Workers can clearly identify the door opening area, and the transparent vision window allows staff to observe the situation on the other side without fully opening the door. This helps improve safety and reduce unnecessary door operation.
Self-Repairing Structure Reduces Maintenance Risk
Another important advantage of the zipper high speed door is its self-repairing function. In busy production areas, doors may sometimes be hit by carts, materials, or other equipment. With a traditional fast door, impact may pull the curtain out of the guide rail and require manual repair or replacement of parts.
The zipper structure is designed to reduce this risk. If the curtain is accidentally displaced from the track, it can return to the guide system during the next operating cycle. This helps reduce downtime and maintenance work, which is especially useful for a drying room that needs continuous operation.
For customers, this means lower maintenance pressure and more stable daily use. The door can support frequent opening and closing while maintaining good sealing performance.
Convenient Remote Button Control
For this project, the door was equipped with remote button control. Operators can open and close the door conveniently from a suitable position, improving access efficiency and reducing unnecessary movement near the drying room entrance.
The control system can also be customized according to different site requirements. Depending on the production process, optional access methods may include push button, remote control, radar sensor, pull cord, floor loop, or linkage with other equipment. For drying room applications, a proper control method can help reduce door opening time and avoid excessive heat loss.
Safety Protection for Daily Operation
A high speed door used in an industrial drying room must not only be fast and well sealed, but also safe. The door can be equipped with safety devices such as photoelectric sensors, safety bottom edge, emergency stop button, and warning light. These configurations help protect operators and materials during door movement.
In addition, soft start and soft stop operation can reduce mechanical impact, making the door run more smoothly and extending the service life of key components. This is important for production sites where the door may be used many times every day.
Project Value
After installation, the zipper high speed door provided the customer with a more efficient entrance solution for the 50°C drying room. The door helps maintain indoor temperature, reduce heat loss, improve sealing, support frequent access, and lower the risk of curtain damage caused by accidental impact.
For industrial drying rooms, oven rooms, warm processing areas, and temperature-controlled production zones, a Heat resistant high speed door offers clear advantages over traditional doors. It combines fast operation, reliable sealing, heat-resistant curtain performance, and convenient control options in one system.
Conclusion
This project shows how a properly selected zipper high speed door can improve the performance of a high-temperature working area. In a 50°C drying room, the door must do more than simply open and close. It needs to help control temperature, protect the production environment, reduce energy waste, and operate reliably under frequent use.
SEPPES can provide customized high speed door solutions according to different site conditions, including door size, temperature environment, opening frequency, control method, and safety requirements. For customers who need an efficient entrance solution for drying rooms or warm industrial spaces, a Heat resistant high speed door is a practical and durable choice.
