BRUSH-GUIDED PVC ROLL-UP DOOR

SEPPES High Speed Roll Up Door for Clean Room Access

SEPPES offers a high speed roll up door for clean room access, with a flexible PVC curtain and double-row brush guides. Compare vision panels, safety sensors and opening controls for frequent material transfers between production areas.

Operating speed
0.6–1.8 m/s
Standard curtain
0.8 mm
Reference frequency
1,000 cycles/day
Guidance
Double-row brushes

Share your opening dimensions and required configuration for a project quote.

01 / CONFIGURATION

SEPPES High Speed Roll Up Door for Clean Rooms: Specifications

Brush-guided reference configuration
SpecificationStandard configurationOptional configuration
Operating speed0.6–1.8 m/s—
Reference operating frequency1,000 cycles per day—
Curtain0.8 mm flexible curtain1.2 mm or 1.5 mm curtain; 2.0 mm frosted curtain, subject to the selected guide and reinforcement arrangement.
Transparent viewing panel1.2 mm—
Side guidance and bottomDouble-row, cartridge-type brush guides with a U-shaped bottom seal.—
Reference frame constructionPainted cold-rolled steel: 2.0 mm guides, 1.0 mm head cover and 5.0 mm side plates.304 stainless steel guides and head cover, each 1.8 mm thick.
Electrical supply220 V—
Backup power—UPS backup option: automatic opening within 10 seconds of a power failure.
Motor power0.75 kW below 12 m²; 1.5 kW for 12–24 m²; 2.2 kW above 24 m². The selected opening must remain within the approved size.—
Installation space500 mm above the opening; 150 mm on the non-motor side; 400 mm on the motor side.—

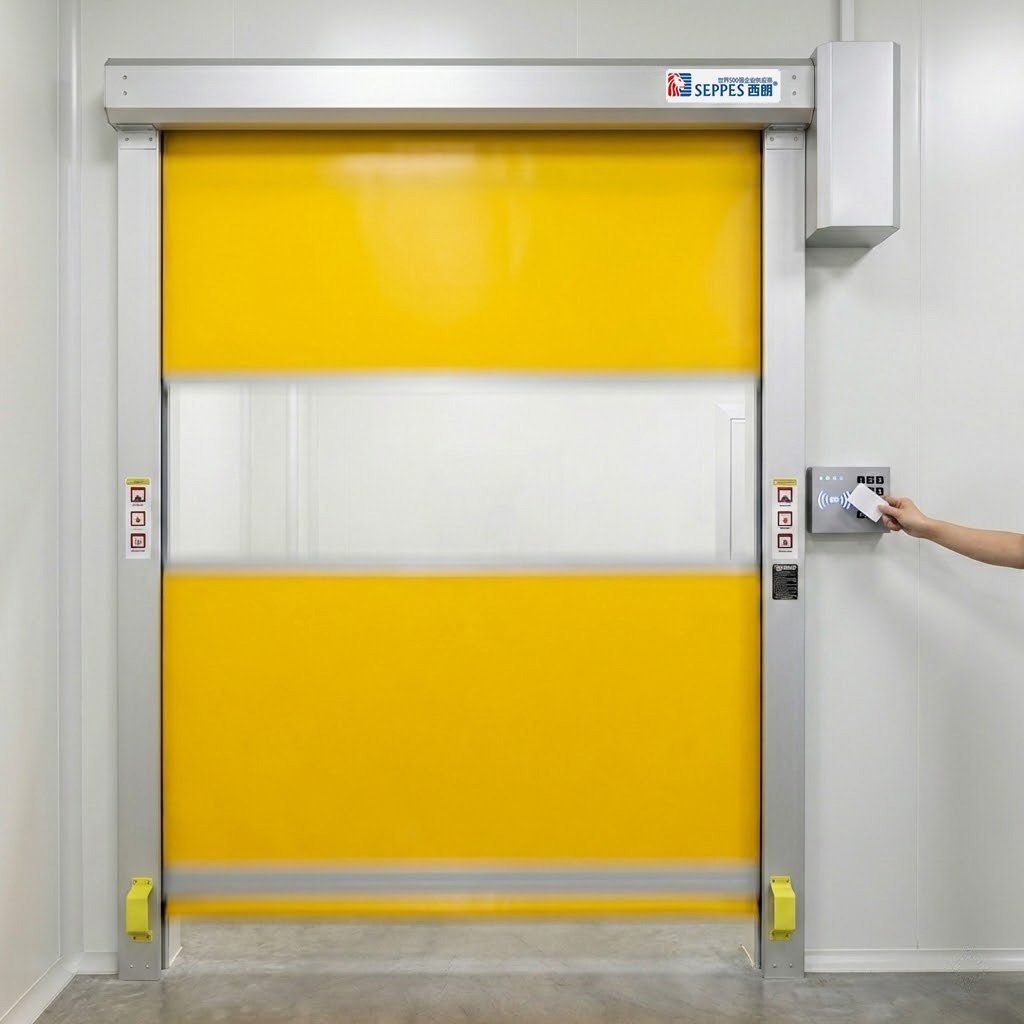

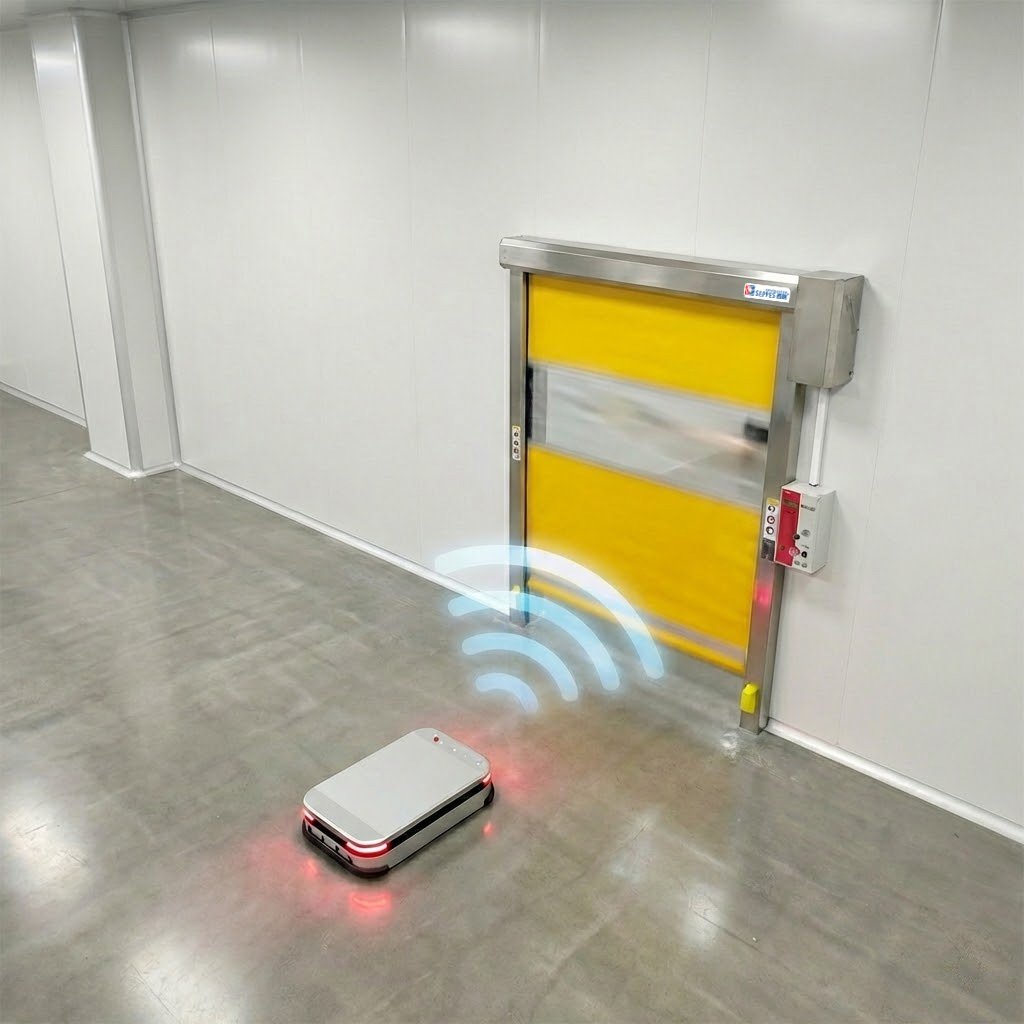

Activation and connectionsManual push button with a reverse-side single-button control; I/O connection ports and 485 communication for integration.Radar, induction loop, pull cord, remote control, Bluetooth or card access; a three-button station is also available.
Safety devicesInfrared photoelectric sensor.Safety bottom edge and safety light curtain are optional.
Motor positionLeft or right side.—

Request a SEPPES quote

Tell us about your opening.

Blank Form (#13)

02 / PRODUCT HIGHLIGHTS

SEPPES Cleanroom Roll Up Door Features

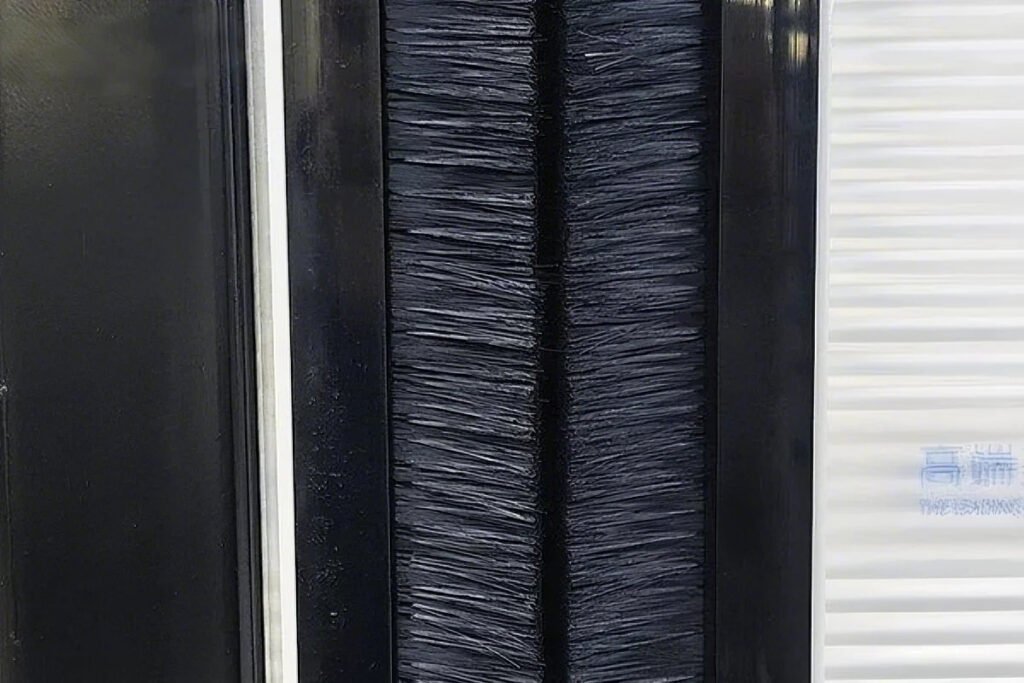

SEPPES double-row brush guides on a PVC high speed door
DUST & DIRT CONTROL

Double-Row Brush Seals

SEPPES uses close-set, double-row brush guides to help limit dust and dirt at the curtain edges during frequent vertical travel.

German control system cabinet on a SEPPES PVC high speed door
DRIVE & CONTROLS

German Control System

SEPPES uses a German control system with a visual HMI for frequent door operation. I/O and RS-485 interfaces support connection to other equipment.

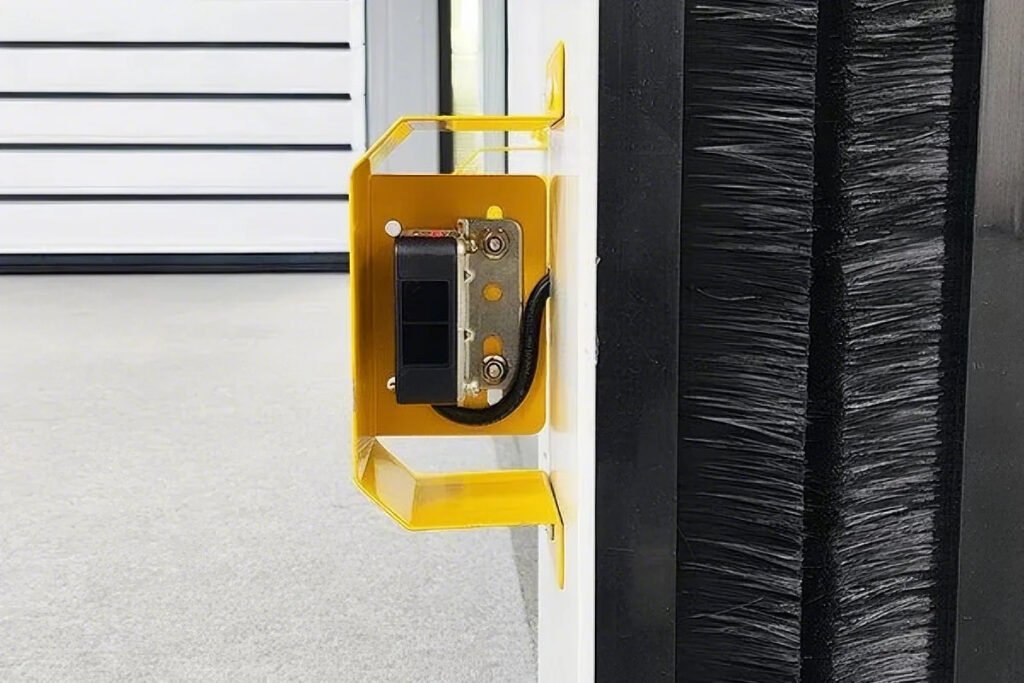

Omron photoelectric sensor option at the lower opening of a SEPPES PVC door
OMRON SENSOR OPTION

Omron Photoelectric Sensor

On a SEPPES door equipped with the Omron option, photoelectric sensing helps detect people and goods crossing the beam during automatic operation.

Transparent vision window in an orange SEPPES PVC roll-up door
TRAFFIC VISIBILITY

Transparent Vision Window

The vision window on this SEPPES PVC roll-up door helps operators check the opposite side before opening and coordinate shared routes for people, carts and goods.

B H h b1 b2
Inside view of the openingAll readings in millimeters (mm)

Installation guide

How to Measure the Door Opening

Measure from the installation side and include the readings in your SEPPES enquiry.

Measure the clear opening

Take width (B) readings at the top, middle and bottom. Measure height (H) from finished floor level at the left, center and right. Record all readings.

Check the installation space

Measure from the opening to the nearest obstruction above (h) and on each side (b1 / b2). Record the smallest clearance in each area and note the intended motor side.

Reference clearances for this door

Headroom
500 mm
Motor side
400 mm
Non-motor side
150 mm

03 / BEFORE YOU CHOOSE

Questions About
SEPPES Brush-Guided PVC Doors

How does this differ from a zipper-guided door?

This SEPPES configuration uses brush guides. Zipper-guided products use a different curtain-edge arrangement. Choose between them using the route, maintenance needs and required performance, rather than curtain appearance alone.

Is a brush-guided door an airtight door?

Brush construction alone does not establish airtightness. For a pressure or leakage requirement, share the target with SEPPES and request evidence for the proposed door configuration.

What information is needed for forklift or pallet traffic?

Provide SEPPES with the largest loaded dimensions, approach direction and normal stopping position. Describe whether people also use the route so the opening controls and safety devices can be reviewed together.

What should the maintenance team review?

Check access to the brush guides, curtain and controls before installation. Ask SEPPES for the supplied model's inspection and replacement procedure, and include it in the facility maintenance plan.
