High-Performance Industrial Sectional Doors
Engineered for Maximum Energy Efficiency, Security, and Operational Reliability
Sectional Door
Durable and Secure Sectional Overhead Door
Our sectional door are built for harsh industrial use, featuring double-walled galvanized steel panels with flame-retardant insulation, a corrosion-resistant powder-coated finish, and a tamper-resistant lock for enhanced security and durability—ideal for demanding environments.
- Enhanced Sealing
- Wind Resistance
- Smooth Operation
- Long Lifespan
- Fail-Safe Systems
- Smart Control
Industrial Sectional Doors: The Ideal Solution For Four Major Industrial Challenges
Customizable Sectional Roll Door To Fit Every Industrial Need
Transparent Window
The uniquely sized 600 × 300 mm windows enhance indoor brightness and provide clear visibility between inside and outside areas. Crafted from high-strength acrylic panels, they offer long-lasting durability and crystal-clear transparency.
Coating Process
A Dacromet coating can be applied to the torsion spring, creating a durable anti-corrosion layer that isolates the surface from air exposure, effectively extending the spring’s lifespan and resistance to harsh environments.
Paint Material
In high-humidity conditions, a baking varnish coating is recommended over the standard galvanized finish to enhance corrosion resistance and ensure consistent door operation.
Small Door
The door-in-door system features an interlock mechanism that prevents the main door from opening unless the smaller access door is fully closed, ensuring safe operation.
Four Main Lift Types For Sectional Roller Shutter Doors
Standard Lift
The most common type, used when sufficient standard headroom is available above the door opening. Most of the door rests horizontally under the ceiling when open.
High Lift
Used when there is ample headroom. The door travels vertically higher before turning horizontally, maximizing clear space above the opening when the door is up.
Vertical Lift
Requires very high headroom (at least the door height plus clearance). The door travels straight up vertically, resting directly above the opening when fully open.
Low Headroom Lift
Specifically designed for installations with extremely limited headroom. Often uses special tracks (like a double-track system) and rear-mounted torsion springs to minimize the required overhead space.
Time To Upgrade——Start Your Smart Sectional Door Journey Now!
More Details Of Sectional Shutter Door Show!
① Vertical Guide Rail
② Vertical Side Frame
③ Door Shaft
④ Torsion Spring Fracture Frotection Fevice
⑤ Sheave
⑥ Torsion Spring Sleeve
⑦ Balance Spring Mechanism (Torsion Spring)
⑧ Coupling
⑨ Inner Bracket
⑩ Top Roller Bracket
⑪ Roller Bracket
⑫Big back muscles(optional)
⑬Wire rope break protection device
⑭Sandwich door panel
⑮Inner hinge
⑯Bottom aluminum profile and bottom sealing strip
⑰Side seal
⑱Top aluminum profile
⑲Top sealing strip
⑳Panel side cover with fixing holes
㉑Step handle
㉒End buffer
㉓Ceiling mounting bracket
Technical Specifications: The Data That Proves Our Promise
You don’t have to guess—our sectional doors deliver measurable results. Explore the data that matters to your business.
| Item | Details | Door Motor | FROG PUPIL |
|---|---|---|---|
| Speed | 0.2–0.3 m/s | Foam material | High-density Japan Tosoh polyurethane foam (48kg ± 2kg/m³) |
| Door panel | 42mm | Manual operation | Manual/electric interchangeable |
| Safety protection | Anti-wire rope break, bottom airbag, torsion spring anti-break | Wind loading rating | 4×4 Newton 700 N/m² |
| Torsion spring | ≥30,000 cycles | Sound insulation | 24dB |
| Motor | German FROG PUPIL, intelligent HMI control | Airtight | Level 2: 2.0 m³/m²/h (under 50Pa pressure) |
| Watertight | Level 3 (30Pa water pressure) | Fire rating | Class B fire retardant |
Our Product Certification
Say Goodbye To Traditional Doors——Click Here To Unlock Smart, Efficient Solutions!
See Our Insulated Sectional Doors In Action For Global Leaders

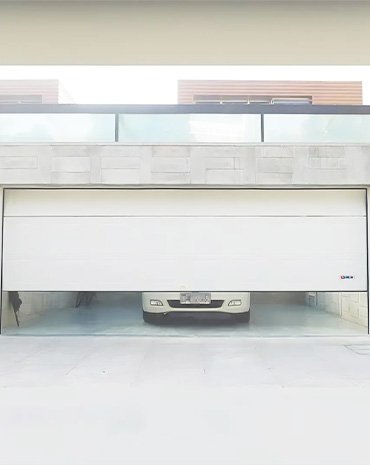

Sectional Garage Doors
Installed in a villa，this sectional overhead garage doors commercial offers fast access and strong wind resistance —ensuring reliable protection even in extreme weather.

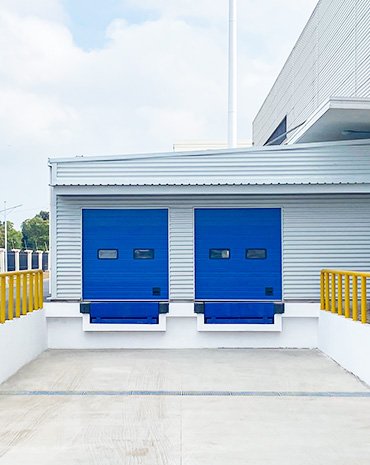

Warehouse Door
Industrial sectional doors are well-suited for equipment rooms that require secure, insulated, and space-saving access solutions.

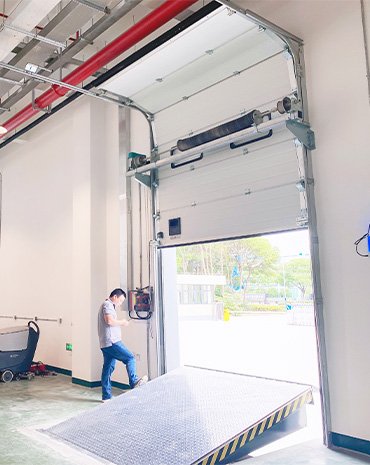

Frequent Entrances And Exits
Our doors are ideal for areas with frequent in-and-out traffic, such as logistics centers and workshops.
Real Words, Real Results
Honest conversations that show our commitment to quality, smooth operations, and lasting partnerships.
Industrial Sectional Door Partners
SEPPES has cooperation customers with more than 60 Fortune 500 companies such as Pepsi, Logitech, Huawei, and Procter & Gamble.
Why Choose SEPPES Sectional Roll Up Door？
Delivering Tailored Door Solutions For Industrial Excellence
Partner to 70+ Fortune 500 Companies
Trusted by 70+ Fortune 500 companies, our quality and reliability meet the highest global standards.
Certified Quality & International Complianc
Certified to CE, SGS, UL, CMA, and ISO standards, we ensure top-tier quality, safety, and reliable performance.
Professional Installation Capabilities
With over 20,000㎡ of advanced facilities and skilled teams, we deliver consistent quality and expert installation for reliable industrial door solutions.
14+ Years of Proven Industry Expertise
With 14+ years of experience, we deliver tailored industrial door solutions backed by deep technical expertise.
Safe Transportation
Once the door is packed, our own dedicated vehicles will be responsible for safely transporting the products to the port for shipment.
Comprehensive Global Insurance Coverage
Your investment is secure with global product liability coverage up to USD 2 million, backed by Ping An Insurance.
Frequently Asked Questions About Sectional Door
A Complete Guide To Selecting The Best Sectional Door For Your Industrial Needs
What types of sectional doors do you offer?
We offer a full range of sectional doors for residential, commercial, and especially industrial use—durable, energy-efficient, and customizable for factories, warehouses, and sandblasting rooms.
What safety features are included?
Our sectional overhead doors come with multiple built-in safety features to protect people and property. These include infrared sensors that detect obstacles, a torsion spring break device and wire rope break protection to prevent the door from falling, anti-pinch panel design to avoid finger injuries, and a bottom safety edge (airbag sensor) that stops the door if it touches anything while closing. Safety and reliability are always our top priorities.
Can it be customized to fit our specific door opening dimensions (e.g. height, width, headroom requirements)?
Yes, our industrial doors can be fully customized to match your required height, width, and headroom. We provide tailored solutions to ensure a perfect fit and optimal performance for any facility layout. Share your specs, and we’ll configure the ideal door.
Could you provide a detailed quotation including all costs (door, operator, shipping, applicable taxes/duties)?
Yes, we provide detailed quotes including door, opener, shipping, taxes, and duties. Please share door dimensions, quantity, installation location, preferred opening/control system, customization needs, and shipping method (FOB, CIF, etc.).
What are the available opening methods?
They can be operated manually (by chain or handle) or automatically using electric motors with control systems, including remote control, radar, or interlocking with other devices.
Are safety features available for these doors?
Yes, common safety features include infrared sensors, bottom safety edge sensors, torsion spring break protection, cable break protection, and manual emergency release systems.
What is the typical service life of an industrial sectional door?
With proper maintenance, the door can last 10–15 years. The torsion springs are usually rated for 30,000 cycles, with options to upgrade to 50,000 or 100,000 cycles for heavy use.
Can windows or pass doors be added?
Yes, vision windows and pedestrian pass doors (door-in-door) can be integrated to enhance light and access without opening the full door.
