Spiral Roller Shutter Doors (also known as Hard High-Speed Doors or Rigid Rapid Doors) are the most advanced solution in the industrial entry market. Unlike standard steel shutters, they utilize a unique non-contact spiral track system that prevents aluminum slats from touching each other during operation. This design allows for ultra-high speeds (up to 2.0 m/s), exceptional thermal insulation, and minimal wear, making them ideal for high-end logistics, automotive manufacturing, and secure parking facilities.
1. What is a Spiral Roller Shutter Door?
The “Spiral” in the name refers to the patented circular spiral guide rail.
The Mechanism: Instead of rolling tightly around a shaft where slats grind against each other (like a standard garage door), the door panel rides into a spiral track. The slats are kept apart, ensuring non-contact operation.
The Material: Constructed from double-walled Aluminum Alloy slats, often filled with high-density PU (Polyurethane) foam for insulation.
The Hybrid Advantage: It combines the security of a traditional overhead sectional door with the speed of a PVC fabric door.
2. Why Choose Spiral Technology?
For facility managers prioritizing ROI and efficiency, Spiral Roller Shutter Doors offer three distinct advantages:
A. Unmatched Speed & Traffic Flow
Standard metal shutters are slow (0.12 m/s). Spiral doors operate at 1.2 m/s to 2.0 m/s.

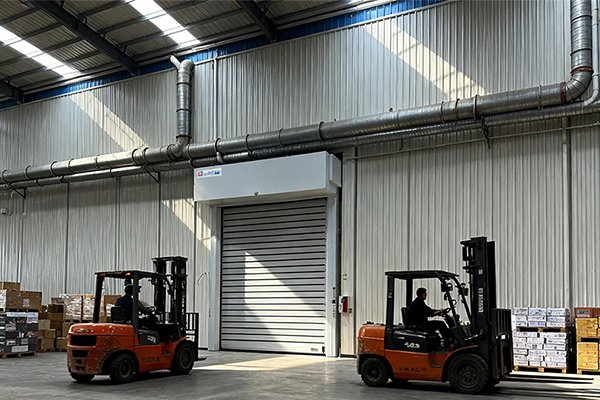

Benefit: A forklift can approach the door, and it will fully open before the vehicle arrives, eliminating braking and waiting time. This boosts logistical efficiency by up to 500% compared to standard doors.
B. “Non-Contact” Longevity
Because the aluminum slats do not touch each other in the spiral track:
No Scratching: The door panel remains pristine and aesthetically pleasing (great for brand image).
Low Noise: Operation is whisper-quiet compared to the rattling of steel shutters.
Extended Lifespan: Less friction means less wear. These doors are rated for over 1 million cycles.
C. Superior Thermal Insulation & Security
Insulation: The 43mm (standard) thick aluminum slats with PU foam break (thermal break) provide excellent R-values, keeping heat in during winter and heat out during summer.
Security: Unlike a fabric PVC door which can be cut with a knife, the aluminum body provides a solid physical barrier against theft and intrusion.
3. Top Application Scenarios
1. Underground Parking & Residential Security
High-end residential complexes use these doors to prevent unauthorized entry (tailgating) due to their fast closing speed, while maintaining a premium look.

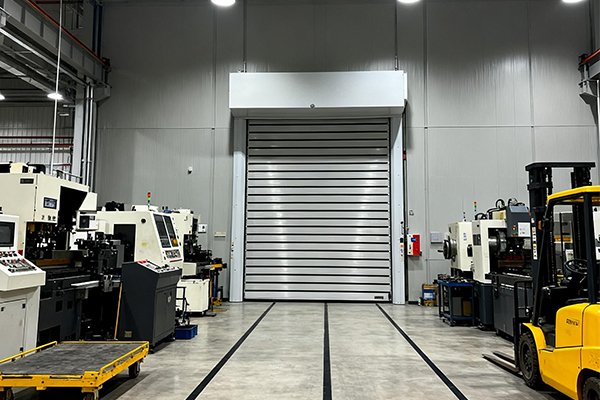

2. Automotive & Heavy Industry
Car manufacturing plants require doors that are fast (for production lines) but durable enough to withstand potential impacts and protect expensive machinery.
3. Cold Chain Logistics
Insulated Spiral Doors are used in freezer buffers. The thermal break slats prevent condensation and icing, while the fast speed minimizes the time the door is open, saving energy.
4. Technical Specifications (Data for Comparison)
| Feature | Specification | Performance Benefit |
| Opening Speed | 1.2 – 2.0 m/s | Adjustable via Servo Control Box |
| Panel Thickness | 40mm / 43mm / 50mm | Double-skin Aluminum + PU Foam |
| Wind Resistance | Class 3-4 (120 km/h) | Suitable for exterior typhoon-prone areas |
| U-Value (Insulation) | ~1.5 W/(m²K) | Significantly reduces HVAC energy costs |
| Motor System | AC Servo Motor | Precision positioning with soft start/stop |
| Safety Features | Light Curtain / Radar | Full-height safety sensors prevent accidents |
5. FAQ: Spiral Doors vs. The Rest
Q: What is the difference between a Spiral Door and a PVC High-Speed Door?
A: Security and Insulation. PVC doors are fast but offer no security against theft and low insulation. Spiral doors offer the same speed but with the physical security of a metal wall and the insulation of a sandwich panel.
Q: Are Spiral Roller Shutter Doors worth the high cost?
A: Yes, for specific applications. While the initial investment is 3-5x higher than a PVC door, the ROI is achieved through energy savings (insulation), reduced maintenance (non-contact track), and lifespan (lasts 5x longer than fabric doors).

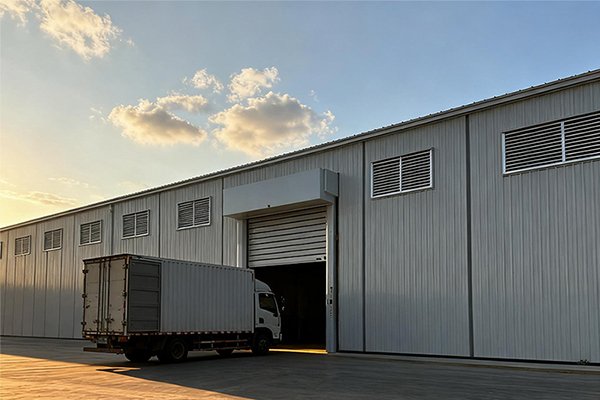

Q: Can it be installed outdoors?
A: Absolutely. The aluminum structure is rust-resistant, and the rigid panel can withstand strong wind loads that would blow a PVC door out of its tracks.
