When planning a factory building, do you encounter the problem that the valuable space on both sides of the aisles is always occupied by open doors, making it impossible to layout equipment or aisles, resulting in a significant reduction in space utilization? Forcing their installation will only lead to poor operation, shortened lifespan, and the sacrifice of valuable architectural space. This article will provide you with a sectional overhead door solution.
What are the Challenges of Limited Space and Large Spans?
The Essential Challenge of Limited Space
Passageway Obstruction: Traditional swing doors or sliding doors require a significant amount of side space when opening. This prevents the installation of equipment, shelving, or the use of the areas adjacent to the door opening as passageways, creating “dead zones.”
Logistics Bottleneck: Loading and unloading areas become congested as a result, reducing the efficiency of vehicle turns, U-turns, and manual handling, thereby severely impacting material flow speed.
The Essential Challenge of Large Span
Core Problem: As the width of the door increases, the lateral stress caused by its self-weight and wind pressure dramatically increases.
Direct Consequences: A weak structure will lead to the door sagging in the middle, severe operational wobbling, track deformation, motor overload, ultimately causing a chain reaction of failures and serious safety risks.
How Do Sectional Overhead Door Solve These Two Problems?

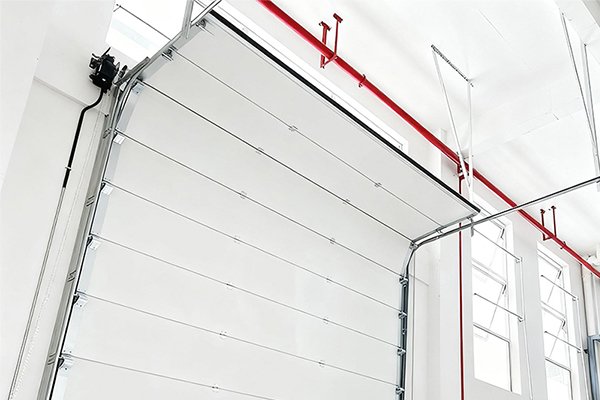

Solution 1: Vertical Lift or Curved Sectional Overhead Door
This is the core technology for solving problems related to limited space. Its principle lies in utilizing the space above the door opening and the ceiling space, allowing the door to be stored in the often underutilized header and ceiling areas.
Technical Comparison:
Standard Sliding Door: Utilize horizontal linear motion. The door panel slides along a fixed horizontal track via a set of hanging rollers at the top.

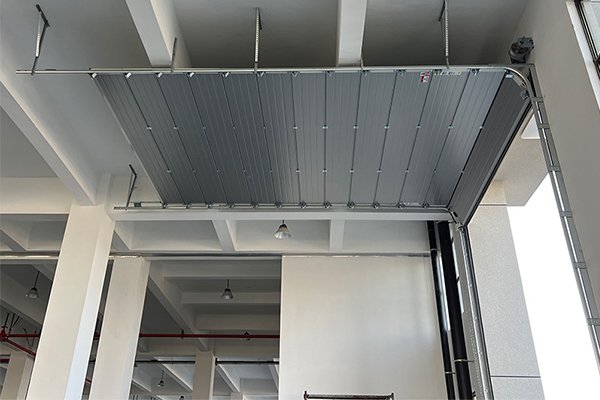

Sectional Overhead Door: Utilize vertical linear motion. Rollers on both sides of the door body run within vertical guide rails, relying on a powerful torsion spring balance system to counteract the door’s self-weight, making opening effortless. For limited header space, the track can be curved and fixed to the ceiling, allowing the door body to run parallel to the ceiling.
Solution 2: Reinforced Overall Material for Sectional Overhead Door
For large-span doors, the core is to construct a rigid frame capable of withstanding immense stress through multiple reinforcement methods.
Strengthened Door Panel Structure:
Adopt double-layer galvanized steel plates with a thickness of ≥40mm, internally filled with high-density polyurethane foam. Not only provides thermal and sound insulation but also offers excellent planar strength.
Integrated dense “grid” or “box” shaped steel reinforcing ribs within the door panels fundamentally prevent the door panels from twisting and deforming under wide spans.
Heavy-Duty Bearing System:
Tracks and Brackets: Use tracks made of high-quality steel with a thickness of≥2.0mm, And increase the density and size of the brackets to ensure they are anchored to the main load-bearing structure of the building.
Precise Balancing and Power System:
It is crucial to individually calculate and configure high-torque motors and heavy-duty torsion spring balancing systems based on the specific weight and dimensions of the door. This is the lifeline for large-span doors to start and stop easily and operate safely.
Solution 3: Customized Sectional Overhead Doors According to Environment
The most complex situation is when both challenges are present. In this case, the solution is by no means a simple assembly of components. It requires a systematic engineering design process. From on-site surveying, stress analysis, 3D simulation, to custom production of non-standard parts and a professional installation team. None of which can be omitted.A professional manufacturer can seamlessly integrate low headroom tracks with large-span reinforcement structures. This integration ensures the reliability and durability of the solution under extreme conditions.
Choosing a Trustworthy Industrial Door Manufacturer
In industrial facilities, doors are not just passageways; they are critical nodes for production logistics. A professional industrial door solution specifically for “Small space, large span” challenges is the best investment in operational efficiency, long-term safety, and space value. If you are troubled by special factory space conditions, please contact our professional team at SEPPSE immediately. We promise to provide tailor-made solutions, offering solid and reliable “facade” protection for your factory’s ultimate space utilization.
